RGB SMD 5050 Pixel LED Module 35mm 9 LEDs UCS1903 Waterproof IP67 Full Color Lights 12V 24V for Amusement Ride Funfair

RGB SMD 5050 Pixel LED Module 35mm 9 LEDs UCS1903 Waterproof IP67 Full Color Lights 12V 24V for Amusement Ride Funfair

$413.88
Sale price  $413.88 Regular price  $0.00
Color

SPECIFICATIONS

Brand Name: HUANUOMEI

Certification: RoHS,CE,ce,CCC,ROHS,EMC

Cover feature: transparent cover / milky cover

Diameter: 35mm

Emitting Color: digital rgb full color

Features: 35mm led pixel light

Height: 35mm

High-concerned chemical: None

IC Type: UCS1903

IP Grade: Waterproof IP67

Is Batteries Included: Yes

Is Bulbs Included: Yes

Item Type: LED Modules

LED Qty: 9LEDs/module

LED Type: 5050 SMD RGB LED

Length: 10cm long cable

Luminous Flux: 60-249

Model Number: HNM-D35-9LED-UCS1903

Origin: Mainland China

Power Source: DC

Product Name: 35mm 9LEDs UCS1903 rgb led pixel module light

Voltage: DC12V/DC24V

Warranty: 2years

Width: 35mm 9leds pixels

Work Voltage: DC12V / DC24V input

12V 24V 35mm 9LEDs UCS1903 RGB SMD 5050 Pixel LED Module Light Amusement Ride Funfair Lights Waterproof IP67 Full Color Bulbs


Product Description

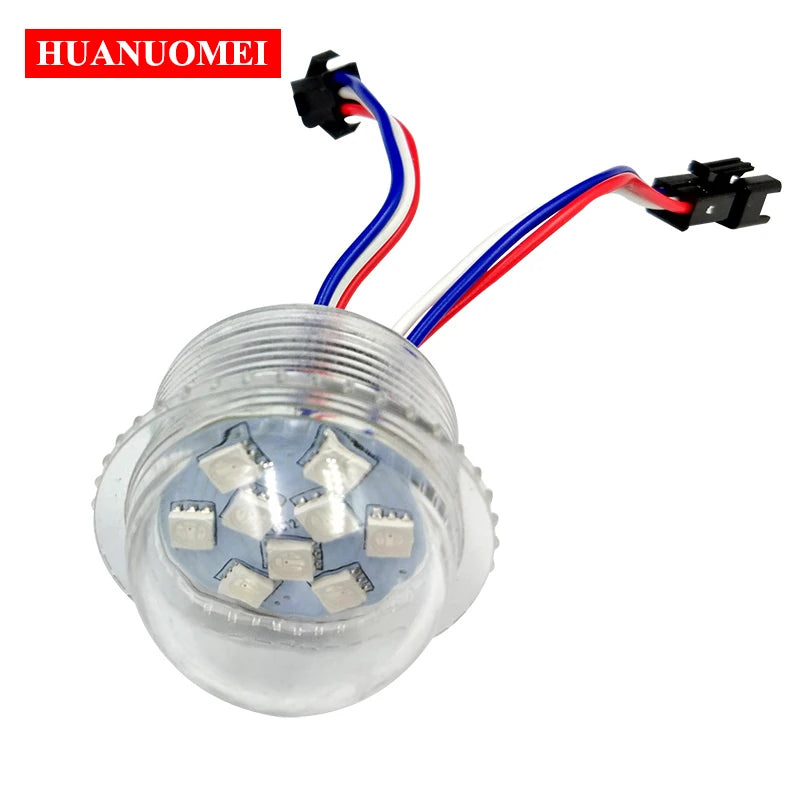

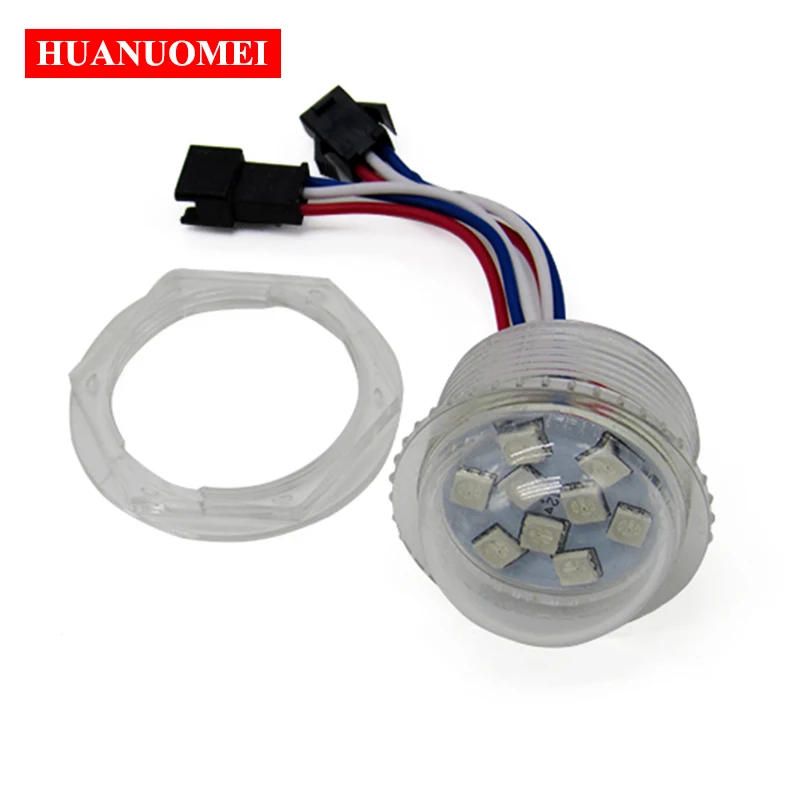

1. 35mm 9smd led pixel light is combinated by plastic housing, the PCB board and 3-pins male and female connector with red, white and blue wire (high temperature-esistant, cold-resistant UV-resistant), 9pcs 5050 RGB SMD LED, 1pcs ucs1903 IC. UCS1903 can use the same led program as WS2811. DC12V or DC24V can be chosen.

2. This product has high brightness, low power consumption, long lifespan, low voltage, low attenuation, rich colors and other characteristics.

3. The products can reach water, chasing, scan results. Depending on the installation of different ways,different colors can be changed in the composition of characters,patterns,and other dynamic effects.The products can widely used in  hotels, KTV entertainment and other interior lighting .

4. The products can be cascaded 20PCS , non-super-tandem. Thickness of the power cord should be based on the actual maximum current, the product power, cabling length (recommended no more than 5 meters) and a low pressure drop depending on the transmission line.



Wiring instruction:

RED cable = +12V/+24V (12V/24V power supply's positive pole)

Blue cable = GND (Ground)

White cable = DAT (DATA)

Buyer Attention:
Please choose the voltage DC12V or DC24V which one you like better.

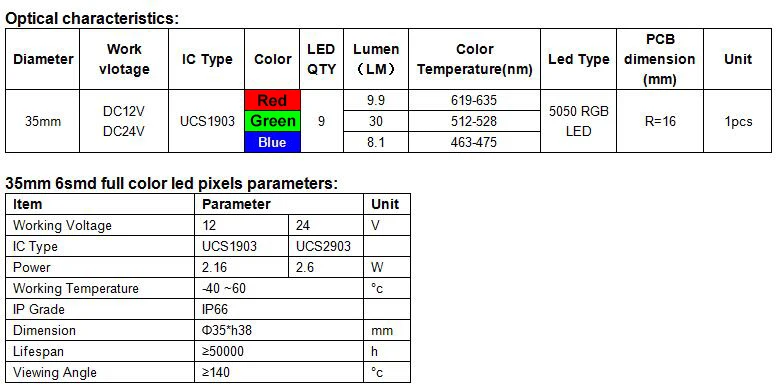

Specification

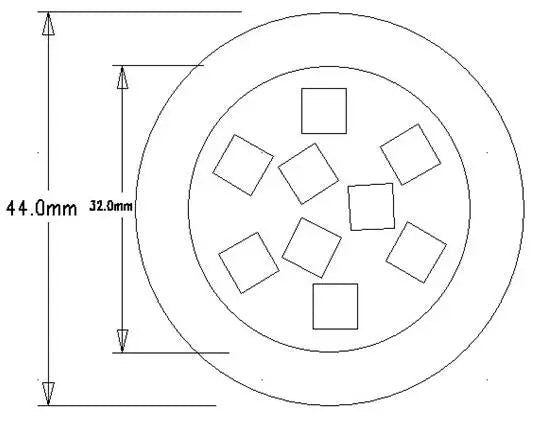

Dimension:

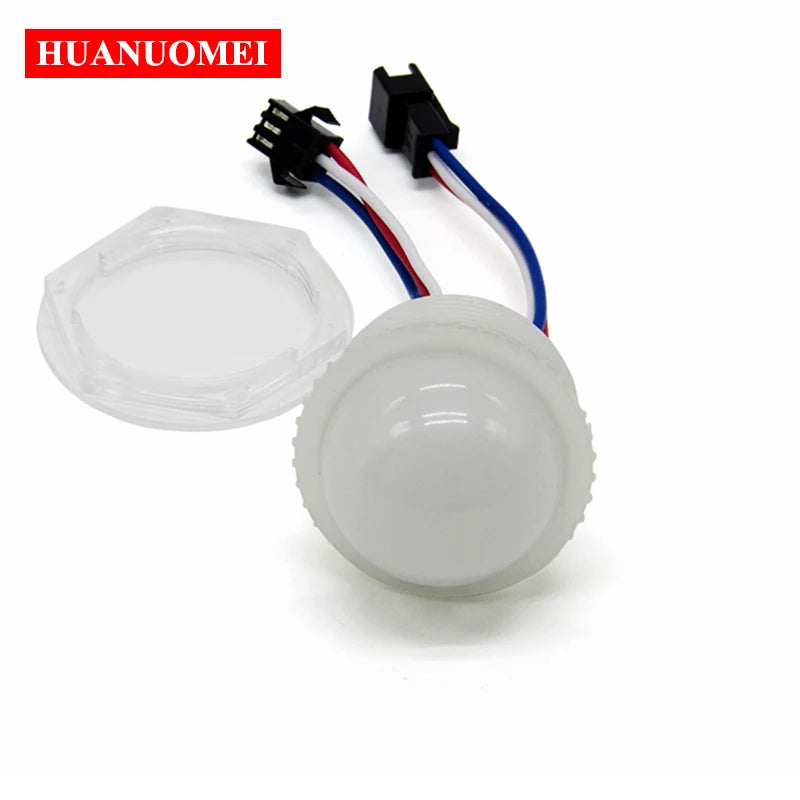

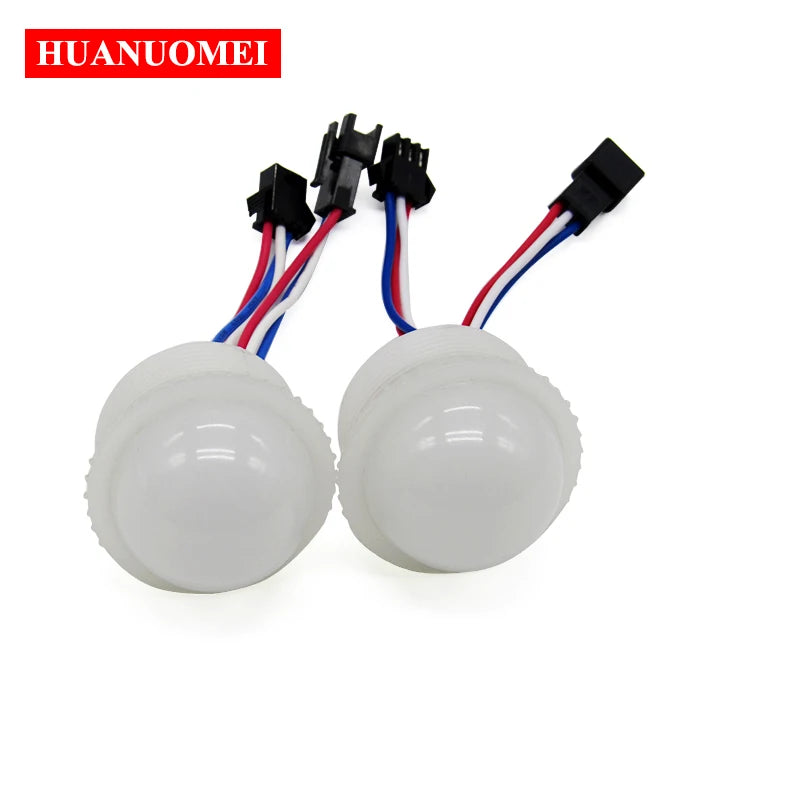

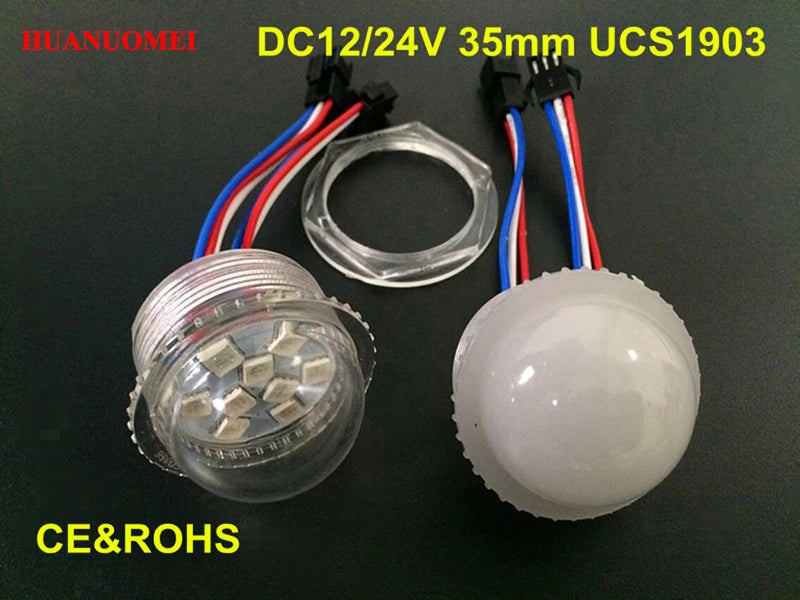

Product Photos

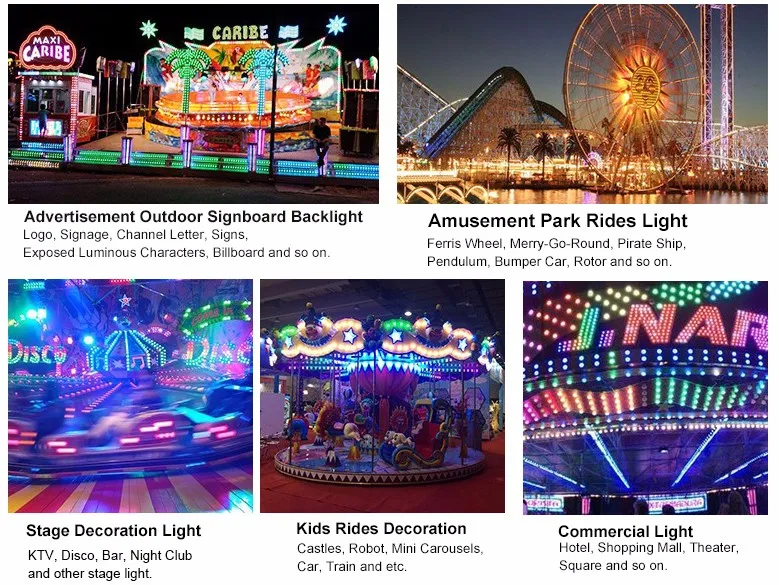

Application

1.This product is popular hot sale in led market, advertisement billboard, exposed luminous characters;

2. Channel Letters Back lighting;

3. Backlight of signage, channel letter, signs, light box;

4. Advertisement signs Back lighting;

5. Advertisement Light Boxes Back lighting;

6. Decoration lights for bar, pub, club, disco;

7. Billboard Back lighting.


Advantages

1.high brightness 5050 SMD RGB LED

2.UCS1903 IC more stable chip

3.35MM diameter, can dig hole with 35mm

4.widely used for disco,club and KTV decoration

5.SD card control system and Madrix software

6.DC12V / DC24V safety working voltage

7.external control

8.waterproof can use in outdoor.
