SPECIFICATIONS

ADC Resolution: 12-bit

Band Width: 500KHz

Bandwidth: 500kHz

Battery Included: No

Brand Name: Gaqqee

Certification: CE,RoHS

Choice: yes

Coupling modes: DC, AC, GND

DIY Supplies: Electrical

Digital Channels: 1

Display Resolution: As per the details page

Display Size: 2.9 Inches & Under

GAQQEE Model: DSO138

High-concerned chemical: None

IS Battery Demountable: No

Max Waveform Capture Rate: 30,000wfm/s

Model Number: DSO183 DC5V Digital Oscilloscope DIY Kit

Origin: Mainland China

Power supply: DC 5V (supplied via USB [Type C interface])

Product dimensions: 118*76*12mm

Real Time Sampling Rate: As per the details page

Real-time Sampling Rate: 1.5Msps

Record Length: As per the details page

Semi-finishedproduct: Yes

Trigger modes: Auto, Normal, Single

Waveform Buffer Length: 1024 points

Product Features:

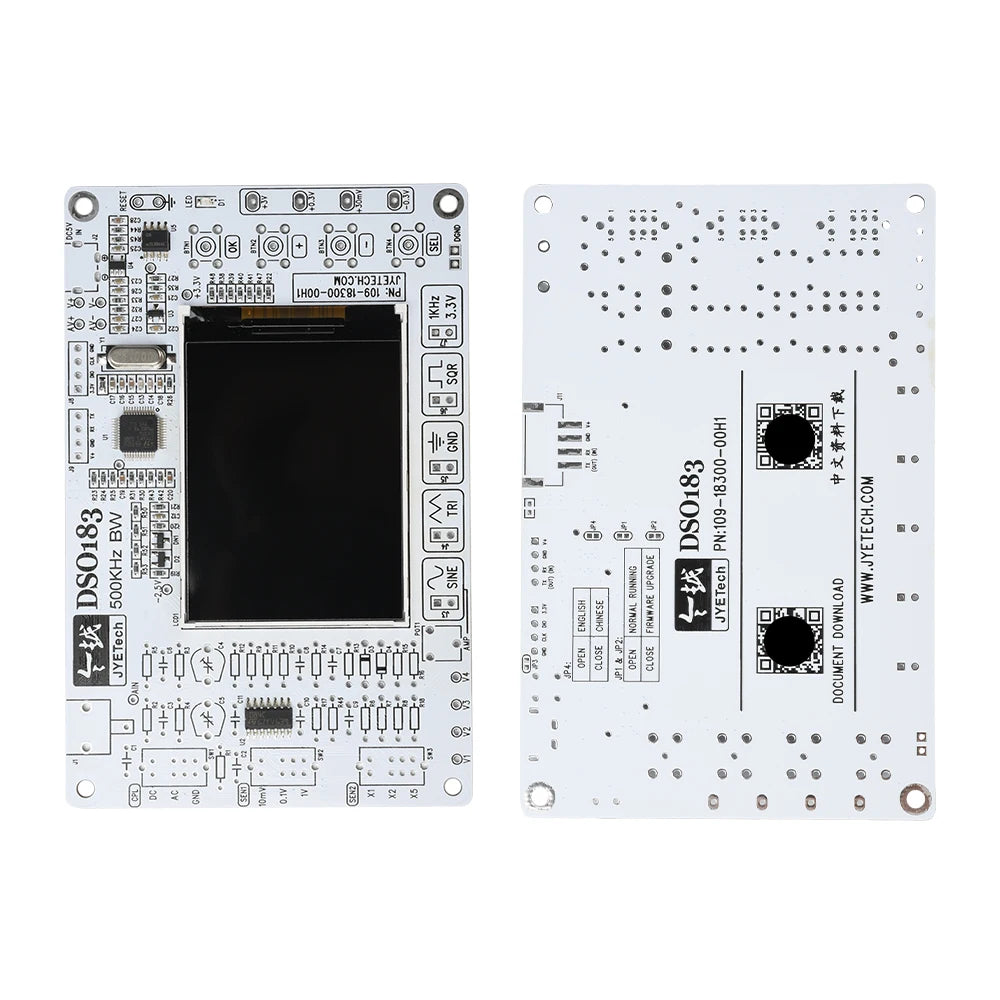

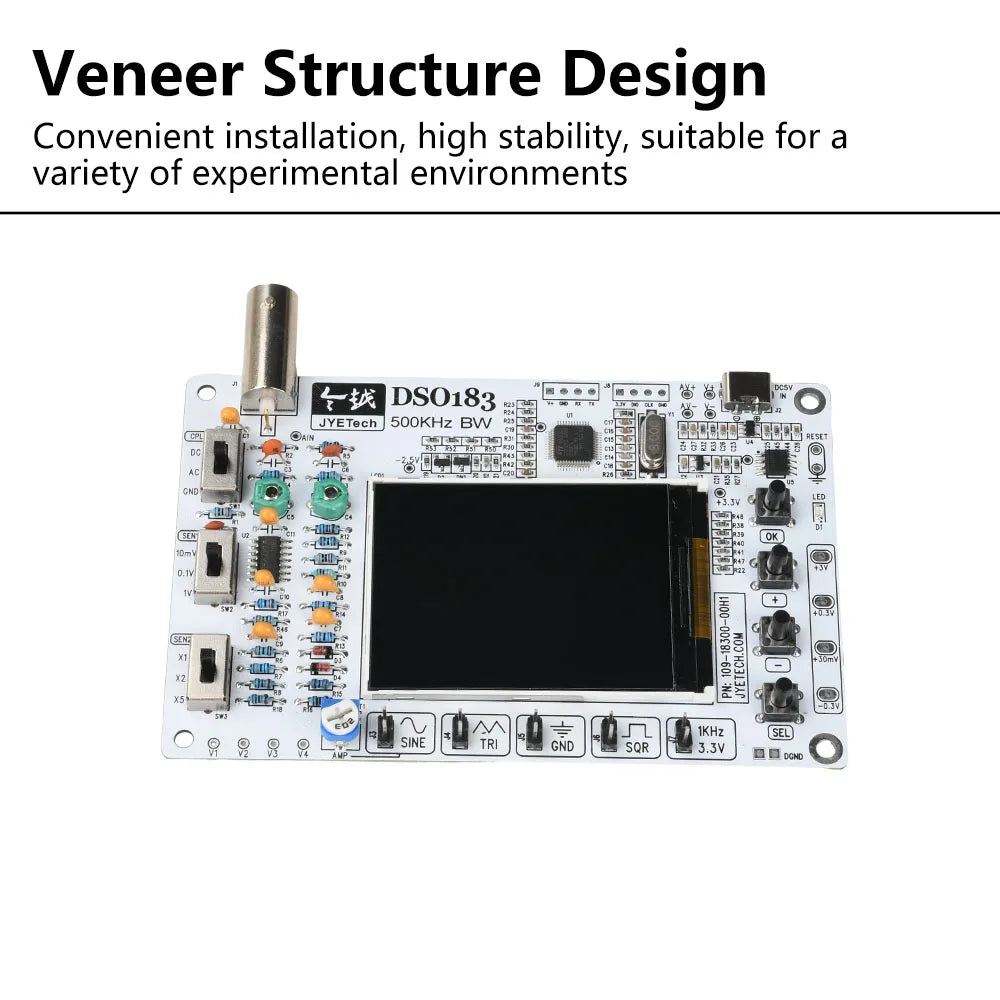

1. Single-board design: Compact integrated structure for straightforward installation and high stability, suitable for diverse experimental environments

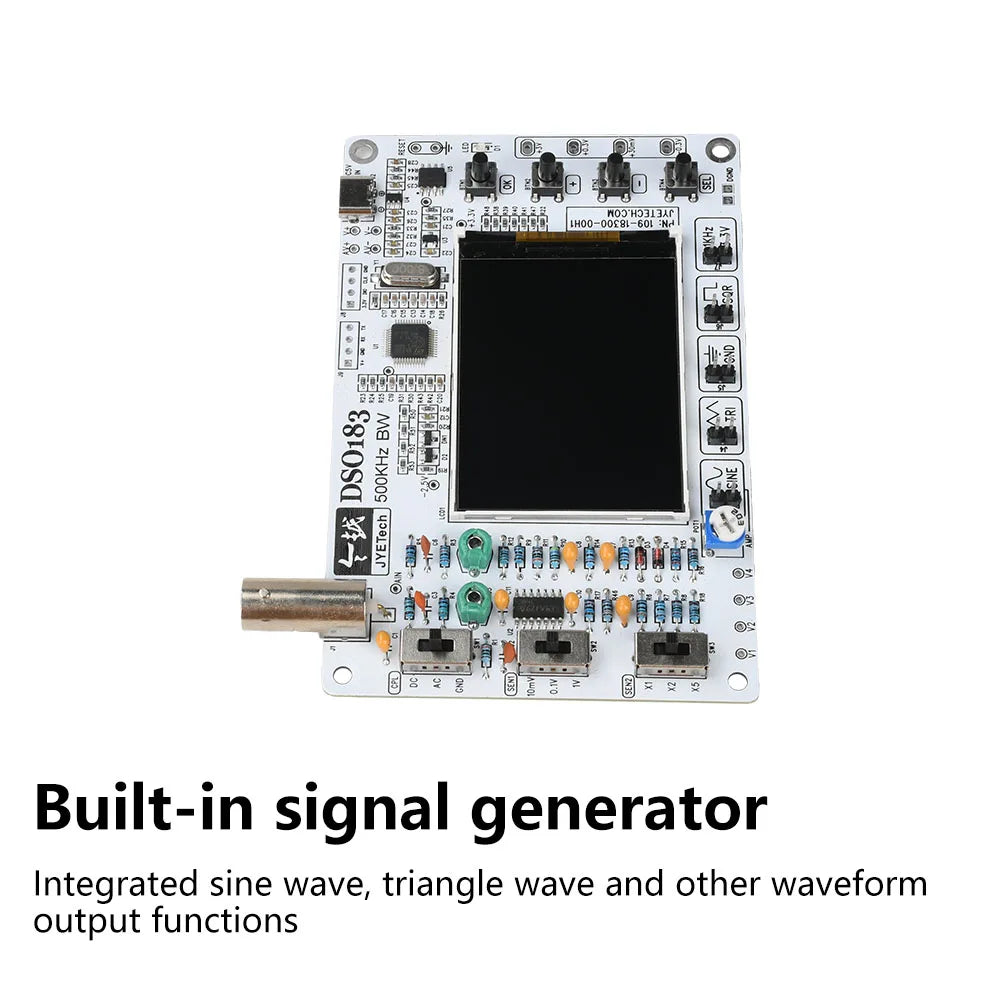

2. Built-in signal generator: Integrates multiple waveform outputs including sine and triangle waves to meet varied testing requirements

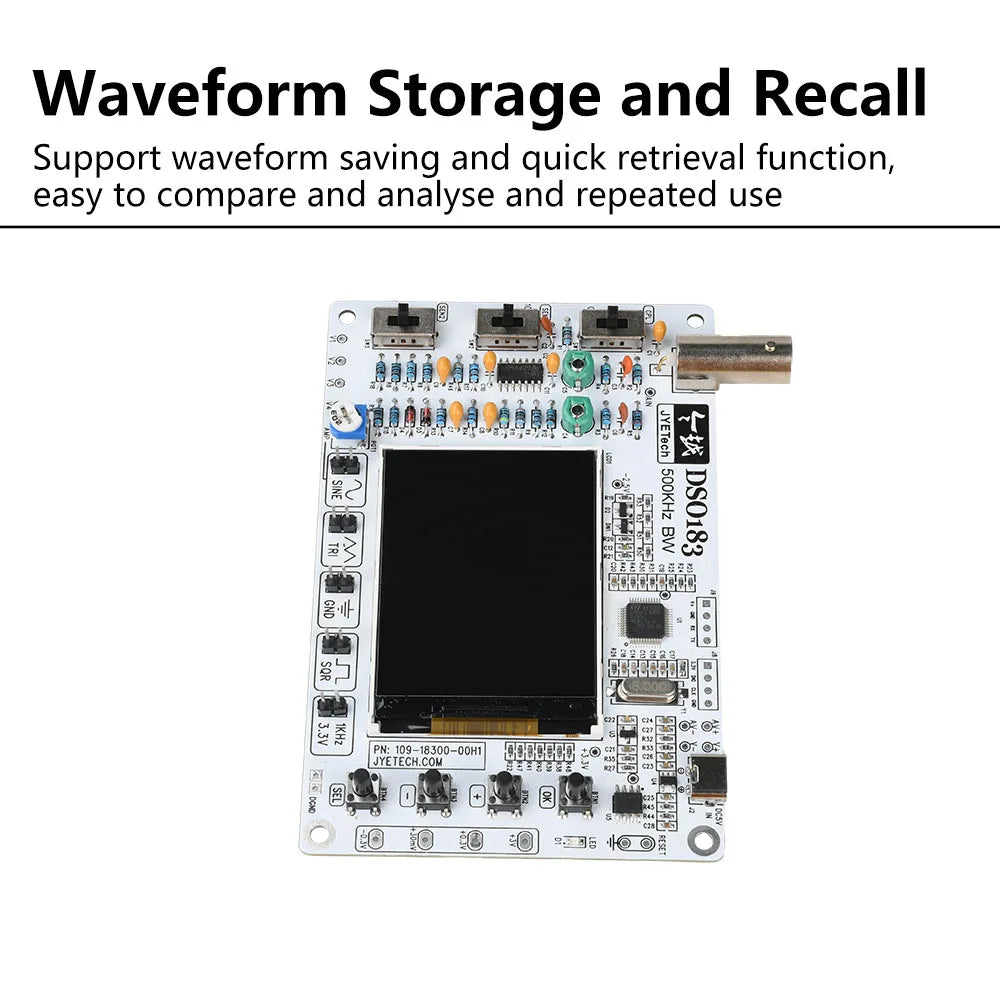

3. Waveform storage and recall: Supports waveform saving and rapid retrieval for comparative analysis and reuse

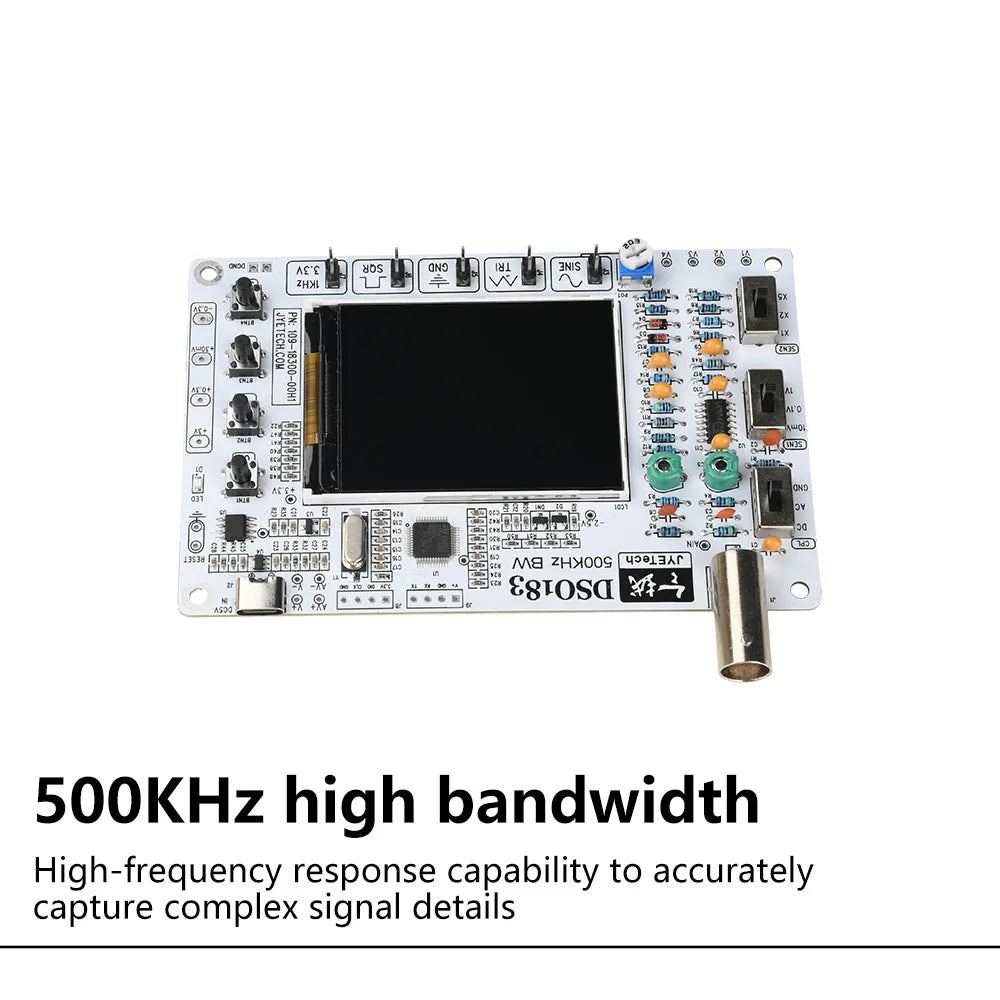

4. 500kHz High Bandwidth: Capable of high-frequency response, accurately capturing intricate signal details

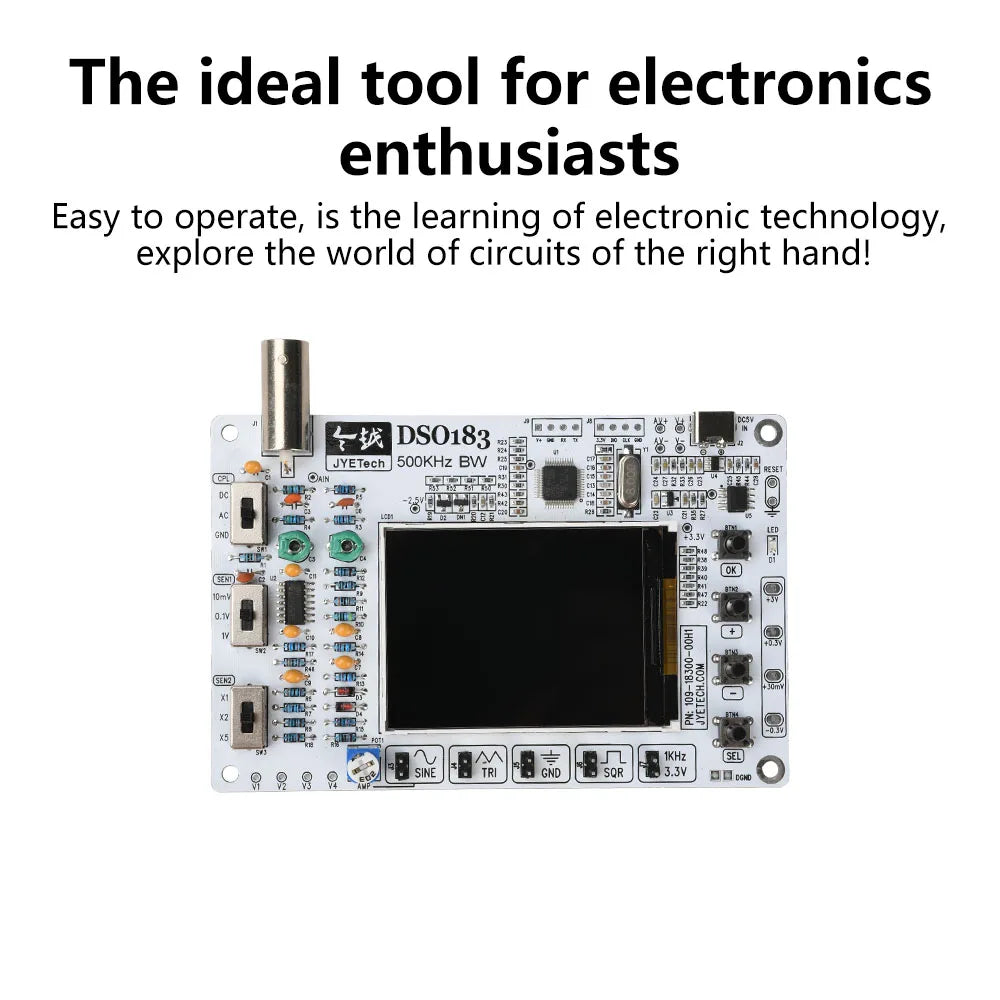

5. Ideal Tool for Electronics Enthusiasts: Simple operation with robust functionality, serving as a capable assistant for learning electronics and exploring circuitry

Product Specifications:

Bandwidth: 500kHz

ADC Resolution: 12-bit

Real-time Sampling Rate: 1.5Msps

Waveform Buffer Length: 1024 points

Vertical sensitivity range: 10mV/div - 5V/div

Input impedance: 1MΩ

Maximum input voltage: 50Vpk

Coupling modes: DC, AC, GND

Horizontal time base range: 1μs/div - 500s/div

Trigger modes: Auto, Normal, Single

Trigger edge: 1μs/div - 500s/div

Power supply: DC 5V (supplied via USB [Type C interface])

Current consumption: <100mA

Product dimensions: 118 × 76 × 12mm

Packing list:

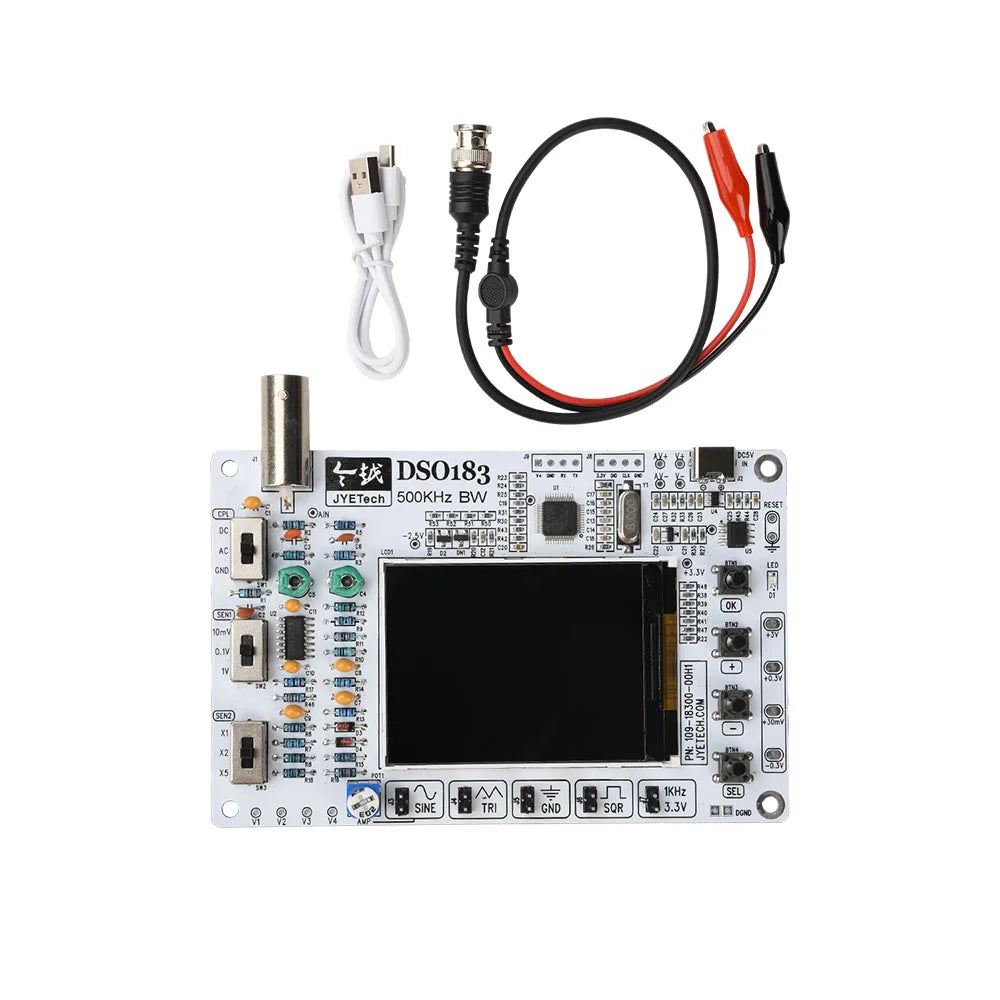

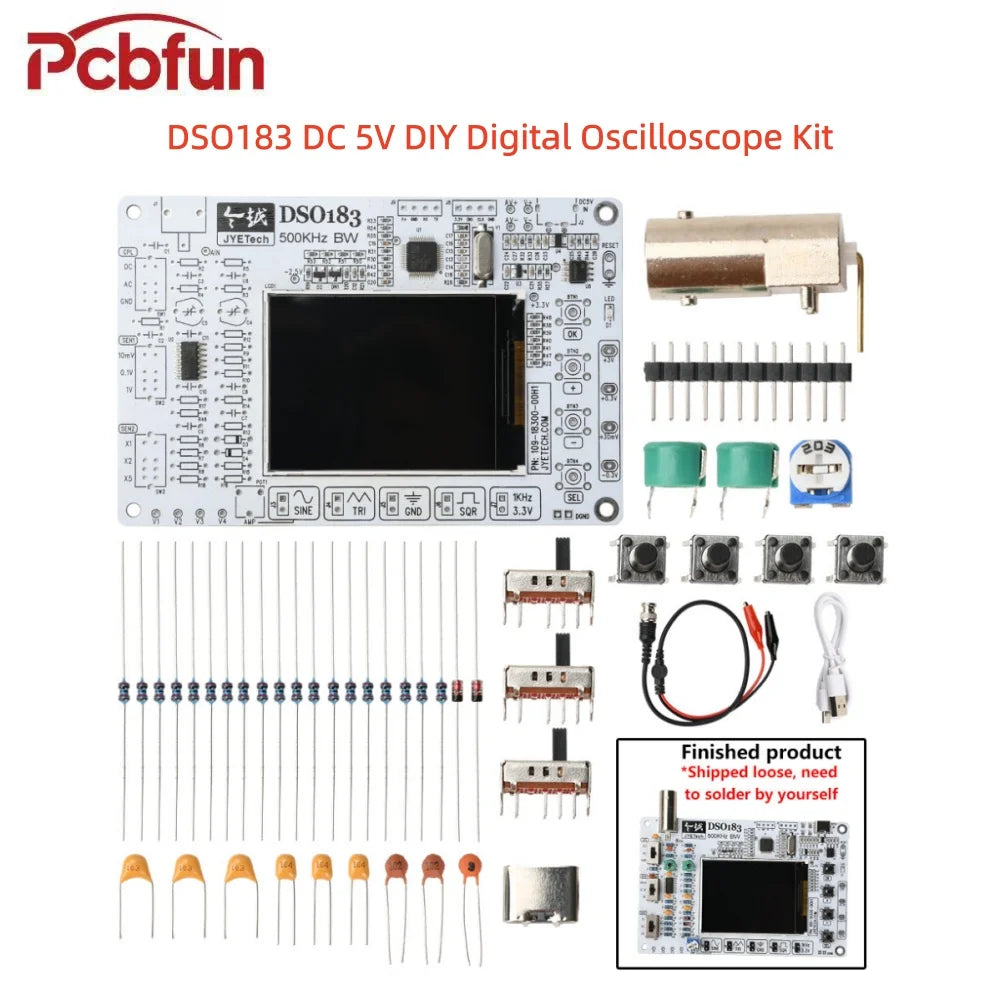

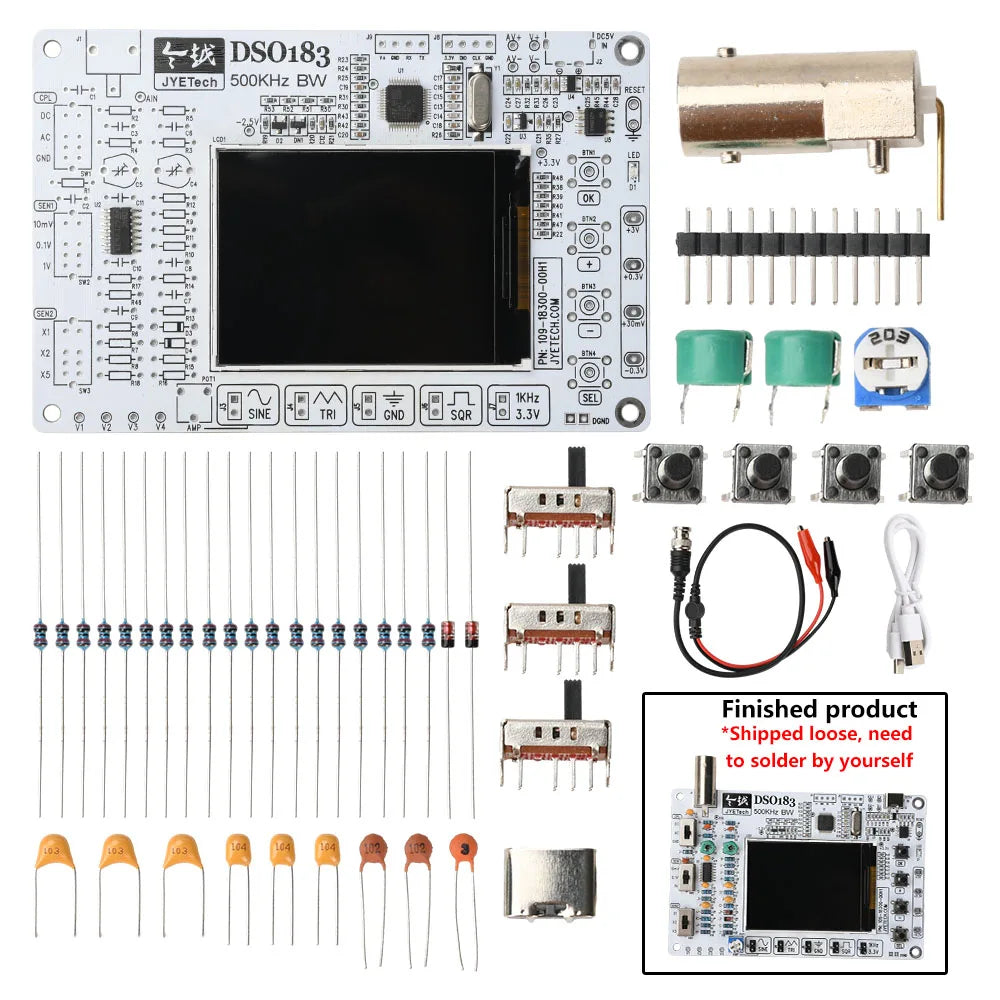

DIY kit components ×1 (without enclosure)
